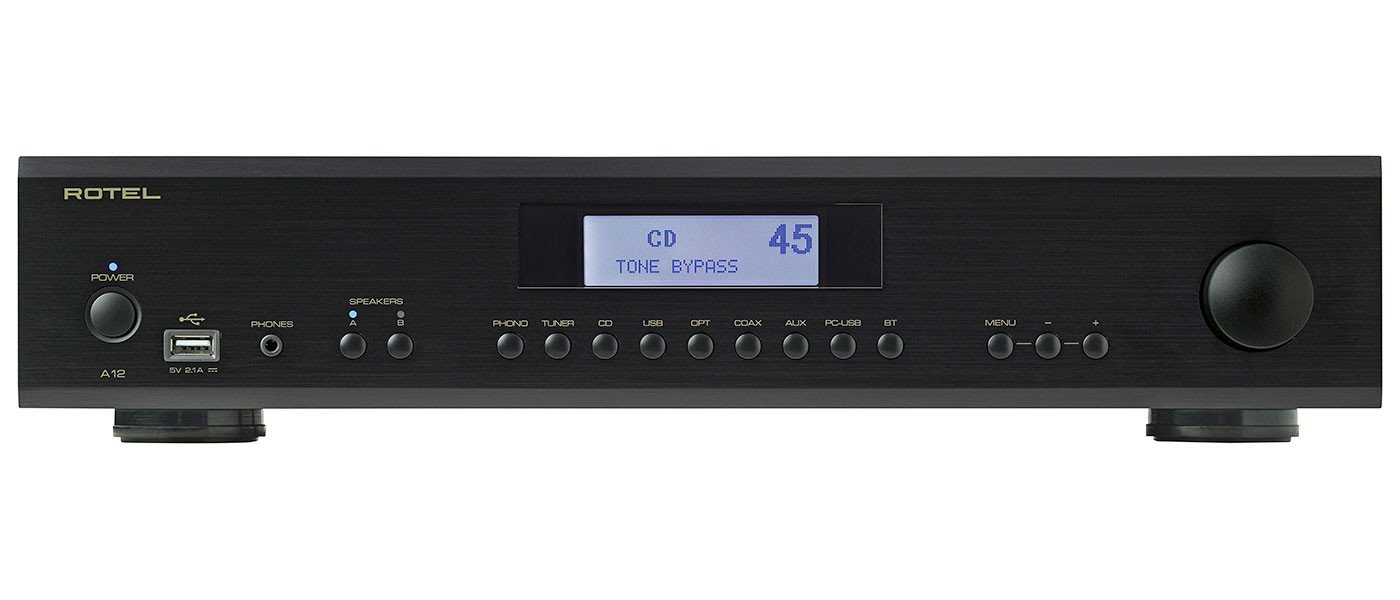

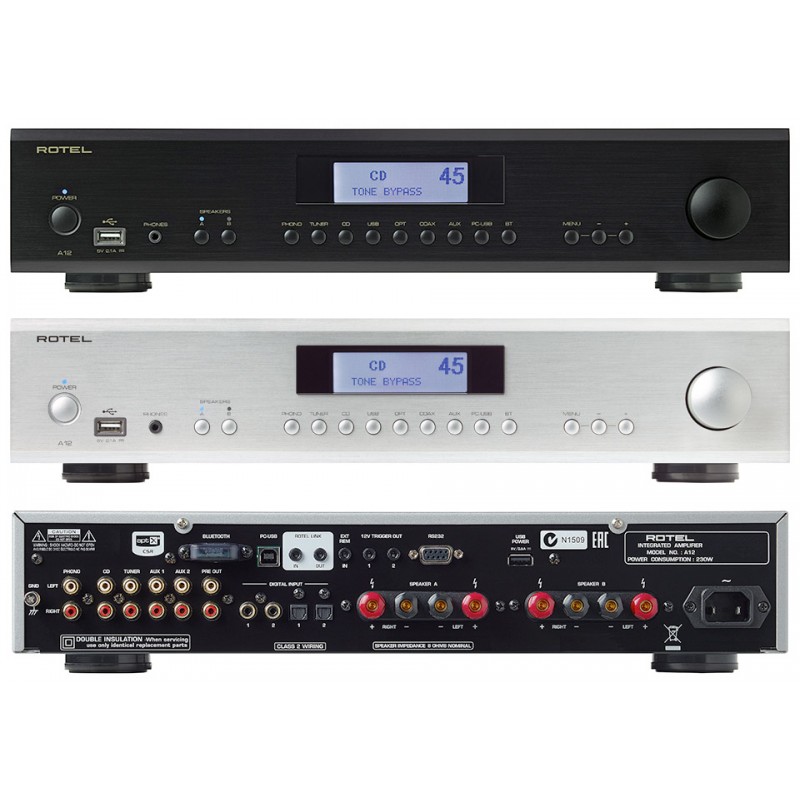

Rotel A-12 Mk2

The A12 integrated amplifier displays the same clean lines and intuitive operation as the A14 with output power rated at 60 watts per channel RMS into 8 ohms. Rotel engineers begin their quest for uncompromising audio performance at the power supply. This is the heart of an amplifier and an area where considerable time and investment is spent.

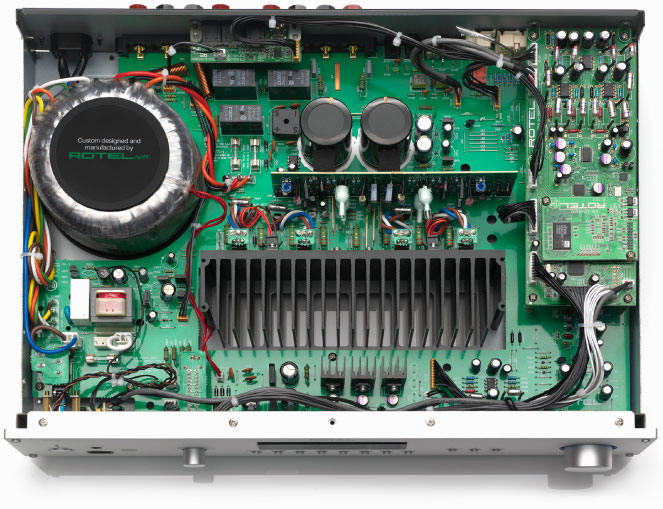

Rotel manufactures its own toroidal transformers in-house to high tolerances using raw materials selected from proven, trusted suppliers. The result is a rugged power supply that won’t easily distort the music under dynamic conditions or with diŽfficult speaker loads.

1,199
Kategorija:
Gamintojas:

Aprašymas

Continuous Power Output: 60W/Ch (All channels driven, 8Ω)

Total Harmonic Distortion (THD): (20Hz–20kHz) <0.03%

Frequency Response:

Line Level Inputs: 10Hz – 100kHz ±0.5dB

Digital Inputs: 10Hz – 80kHz ±3dB

Phono Input: 20Hz – 15kHz ±0.5dB

S/N Ratio (IHF „A” Weighted):

Line Level Inputs: 100dB

Digital Inputs: 103dB

Phono Input: 90dB

Dimensions (W × H × D):

430 × 93 × 345mm
17″ × 3.6″ × 13.5″

Front Panel Height: 80mm (3.15″)

Power Requirements: 230V, 50Hz

Power Consumption: 230W

Standby Power Consumption: <0.5W

Net Weight: 8kg (17.6lbs.)
