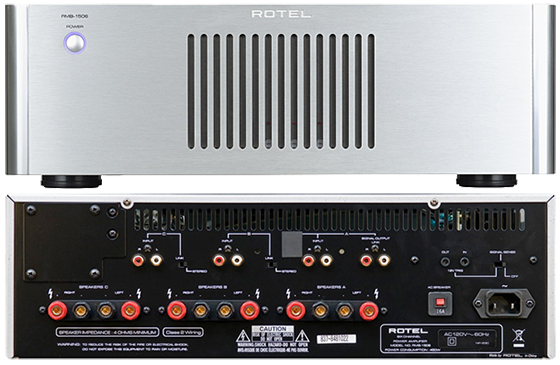

Rotel RMB-1506

The RMB-1506 is perfect for less elaborate multizone audio systems and can be mated with our surround receiver or our preamp/processors to add music throughout three additional living areas or “zones” of your home. A buffered link output allows you to link additional amplifiers for larger multizone applications.

As with all Rotel custom amplifiers it includes the most wanted custom installation features such as front panel attenuation control, input linking, 12-volt trigger, buffered link output, five-way binding posts and an IEC detachable power cord.

1,349
Kategorija:
Gamintojas:

Aprašymas

Continuous Power Output:

50W/Ch (All channels driven, 8Ω)

80W/Ch (All channels driven, 4Ω)

Total Harmonic Distortion (THD): (20Hz–20kHz) <0.03%

Frequency Response: 10Hz – 100kHz ±1dB

S/N Ratio (IHF „A” Weighted): 115dB

Gain: 26dB

Intermodulation Distortion (60Hz:7kHz, 4:1): <0.03%

Damping Factor: >200

Speaker Impedance: 4Ω minimum

Input Sensitivity: 1V

Input Impedance: 20kΩ

Dimensions (W × H × D):

431 × 144 × 424mm

17″ × 5.7″ × 16.7″

Front Panel Height: 3U / 132.6mm (5.25″)

Power Requirements: 230V, 50Hz

Power Consumption: 450W

Standby Power Consumption: 2.6W

Net Weight: 15.3kg (34lbs.)
