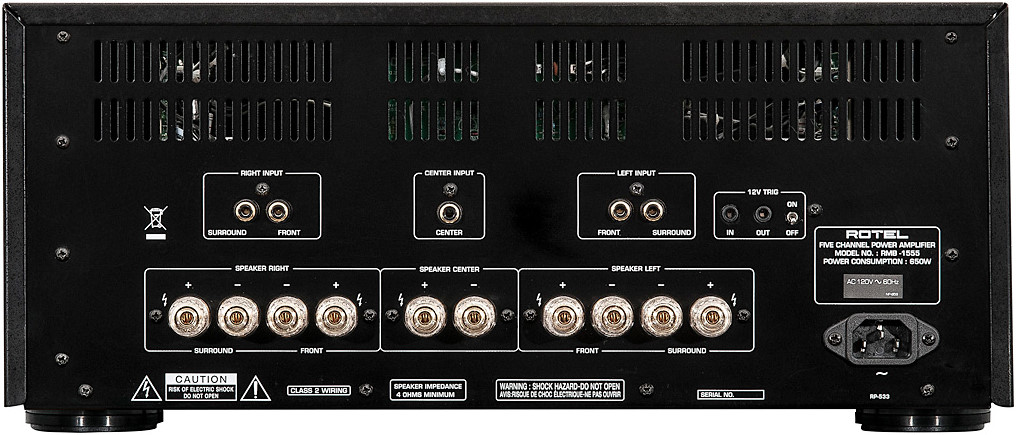

Rotel RMB-1555


The RMB-1555 is a remarkable multichannel amplifier with power output conservatively rated at 120 Watts per channel into 8 ohms (all channels driven!). With all but the most demanding speakers located in extraordinarily large rooms.

The RMB-1555 employs a high current, toroidal transformer matched to discrete output transistors with their higher thermal stability and freedom from the designed-in compromises that characterize their integrated circuit cousins. The Class AB amplifier configuration assures the best balance between power output and thermal efficiency.

Kategorija: Žymos: ,

Continuous Power Output: 120W/Ch (All channels driven, 8Ω)

Total Harmonic Distortion (THD): (20Hz–20kHz) <0.03%

Frequency Response: 10Hz – 100kHz +0.5, -3dB

S/N Ratio (IHF „A” Weighted): 116dB

Gain: 26.5dB

Intermodulation Distortion (60Hz:7kHz, 4:1): <0.03%

Damping Factor: 180

Speaker Impedance: 4Ω minimum

Input Sensitivity: 1.5V

Input Impedance: 12kΩ

Dimensions (W × H × D):

431 × 188 × 454mm

17″ × 7.5″ × 17.9″

Front Panel Height: 4U / 176.8mm (7″)

Power Requirements: 230V, 50Hz

Power Consumption: 650W

Standby Power Consumption: 0.5W

Net Weight: 21.8kg (48lbs.)
