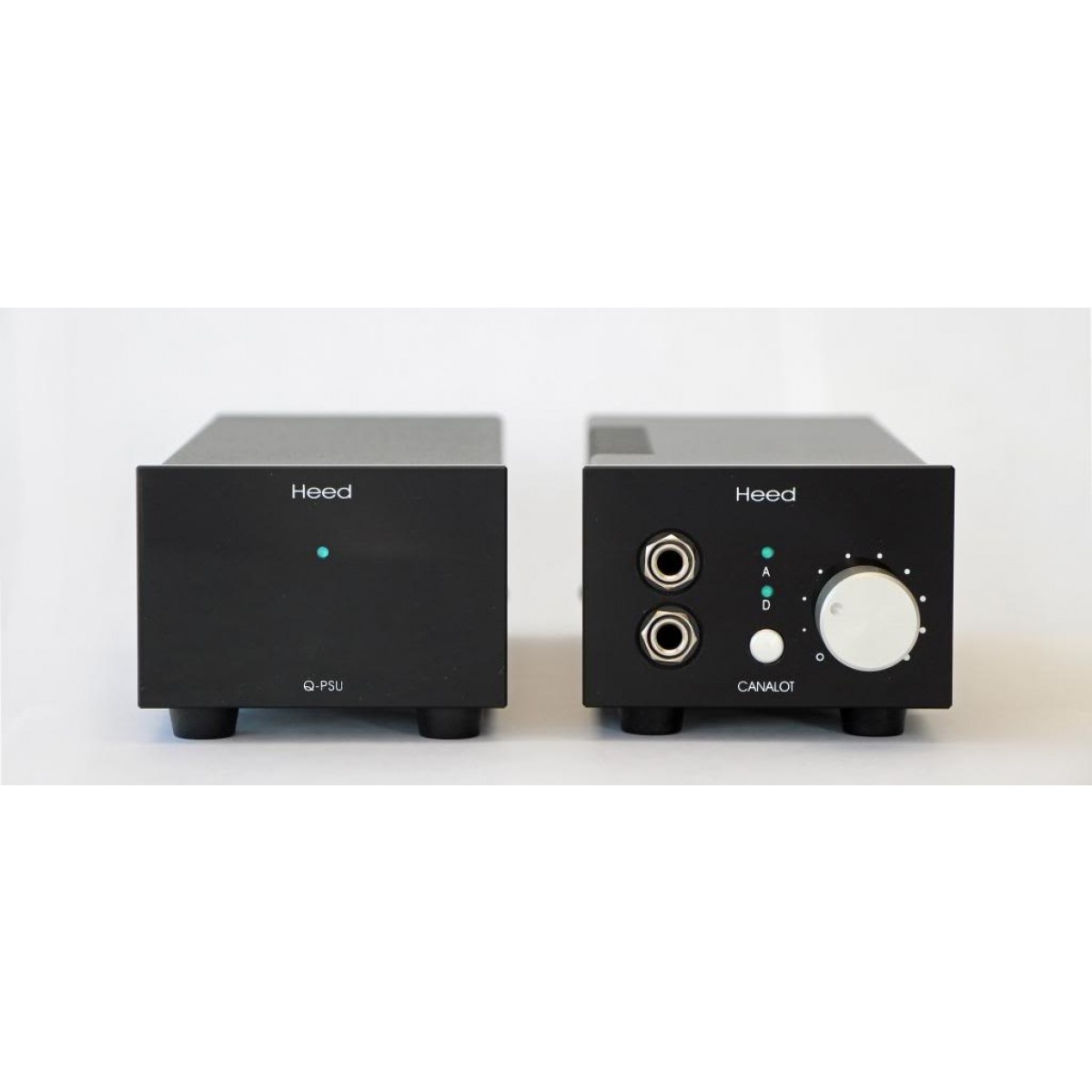

Heed Modular Canalot

670.00

Dviejų lizdų ausinių stiprintuvas Heed Modular Canalot.

Modulis gali būti papildytas keitikliu (DAC) ir USB.

Kaina nuo €670 iki €990



Inputs: 1x analogue / 1x S/PDIF RCA / 1x USB

Outputs: 2x 6.35mm headphone / 1x line out

Frequency response (+0, -1 dB): 6 Hz – 260 kHz

Input impedance: 10 kΩ

Gain: 20 dB

Input sensitivity: 320 mV

Power: 200 mW (32 Ω) / 100 mW (120 Ω) / 20 mW (600 Ω)

SNR: > 100 dB

Upgrade card options: 1 DAC 1.3 / 1 USB 2.0

Supported sampling frequencies: 44.1 / 48 / 88.1 / 96 / 176.4 / 192 kHz

Power supply options: X-PSU 40 (standard) / Q-PSU / Obelisk PX

Max. consumption: 17 W

Weight: 1.2 kg

Dimensions (W x H x D): 9.5 x 7.5 x 25 cm







Kategorijos: , Žymos: ,
Aprašymas

Dviejų lizdų ausinių stiprintuvas Heed Modular Canalot.

Modulis gali būti papildytas keitikliu (DAC) ir USB.

Kaina nuo €670 iki €990



Inputs: 1x analogue / 1x S/PDIF RCA / 1x USB

Outputs: 2x 6.35mm headphone / 1x line out

Frequency response (+0, -1 dB): 6 Hz – 260 kHz

Input impedance: 10 kΩ

Gain: 20 dB

Input sensitivity: 320 mV

Power: 200 mW (32 Ω) / 100 mW (120 Ω) / 20 mW (600 Ω)

SNR: > 100 dB

Upgrade card options: 1 DAC 1.3 / 1 USB 2.0

Supported sampling frequencies: 44.1 / 48 / 88.1 / 96 / 176.4 / 192 kHz

Power supply options: X-PSU 40 (standard) / Q-PSU / Obelisk PX

Max. consumption: 17 W

Weight: 1.2 kg

Dimensions (W x H x D): 9.5 x 7.5 x 25 cm
