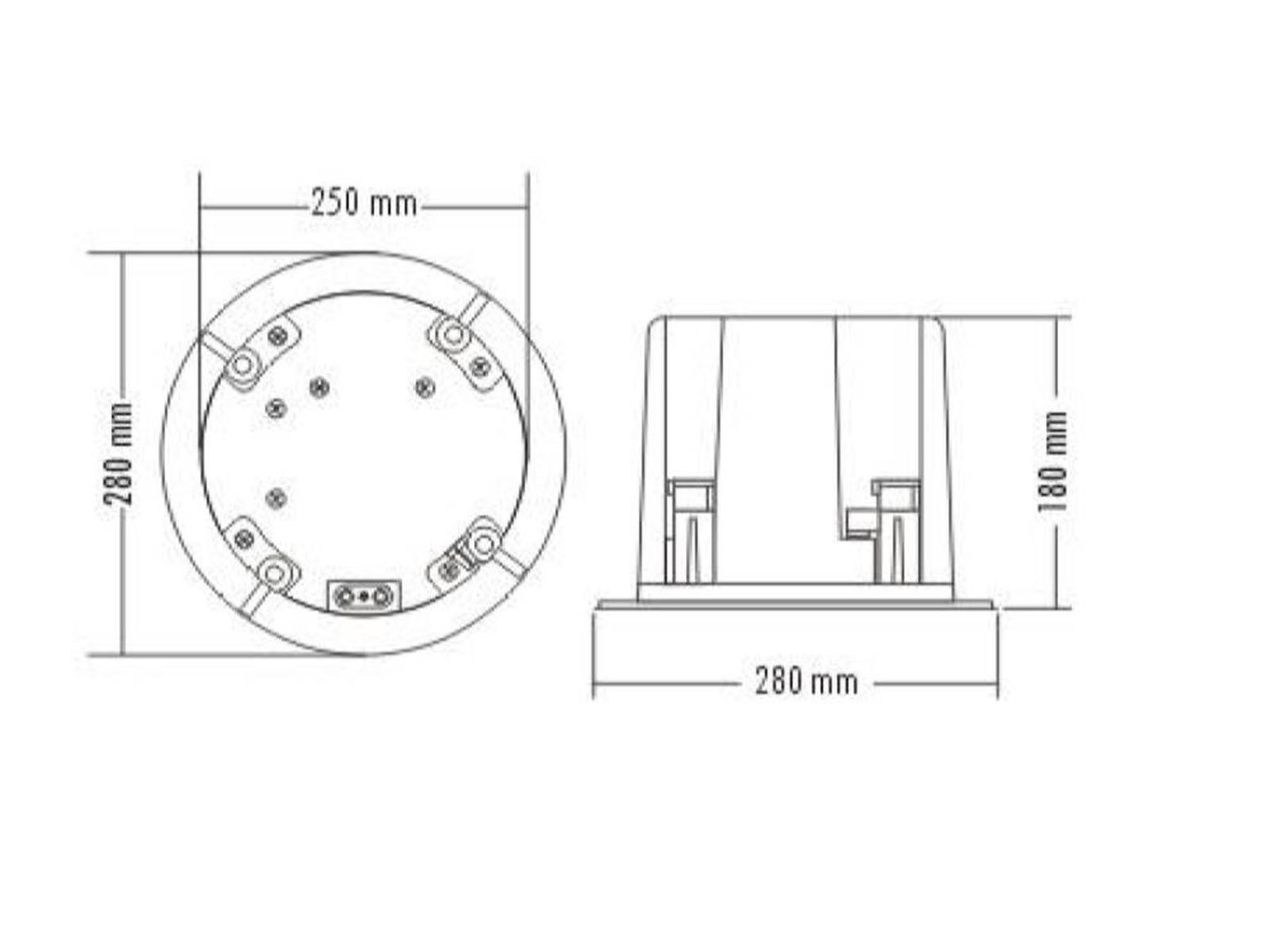

Outdside diameter:       280 mm

Depth:         180 mm

Cutout:       250 mm

Woofer Size:                   6,5 inch

Tweeter Size:                  1,5 inch

Input:          70V/100V/8Ω

Impedance:                     Com/2.6KΩ/1.3KΩ/670Ω/330Ω/165Ω

Low impedance dynamic power:   180W

Applicable in 100V:      Yes

100V Transformer power taps:       3,8W – 7,5W – 15W – 30W – 60W

Applicable in 70V:         Yes

70V Transformer power taps:         1,9W – 3,8W – 7,5W – 15W – 30W

Max SPL 1M:                   107 dB

Frequency Response:   60 – 2 KHz

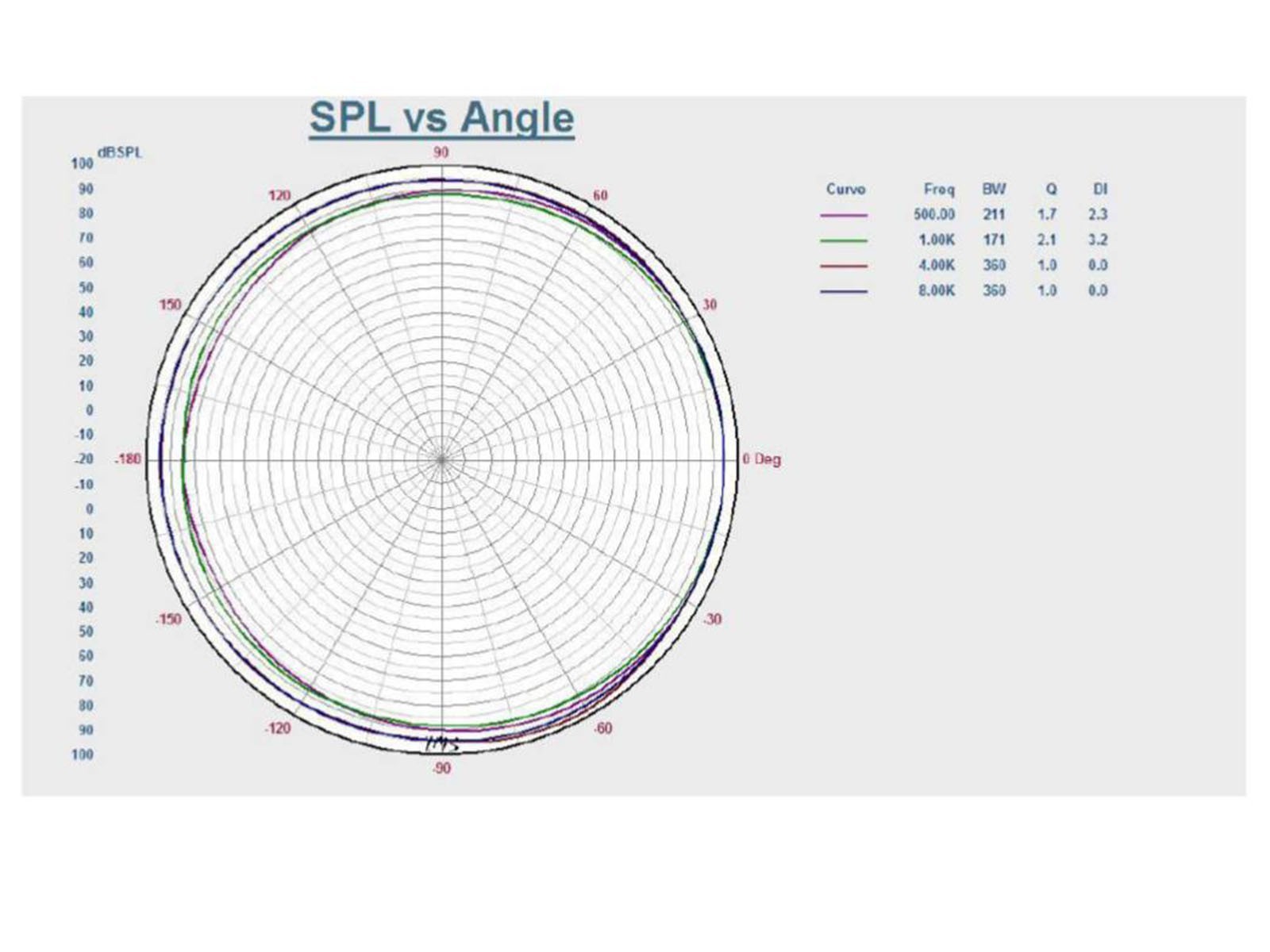

Vertical Dispersion 1000HZ:            180⁰

Main construction material:            Baffle: ABS/ Grille: Steel / Back Can: ABS

Colour:        White (RAL 9010)

Mounting System:         Flush-mount dog ears

Weight:       3,5 Kg
