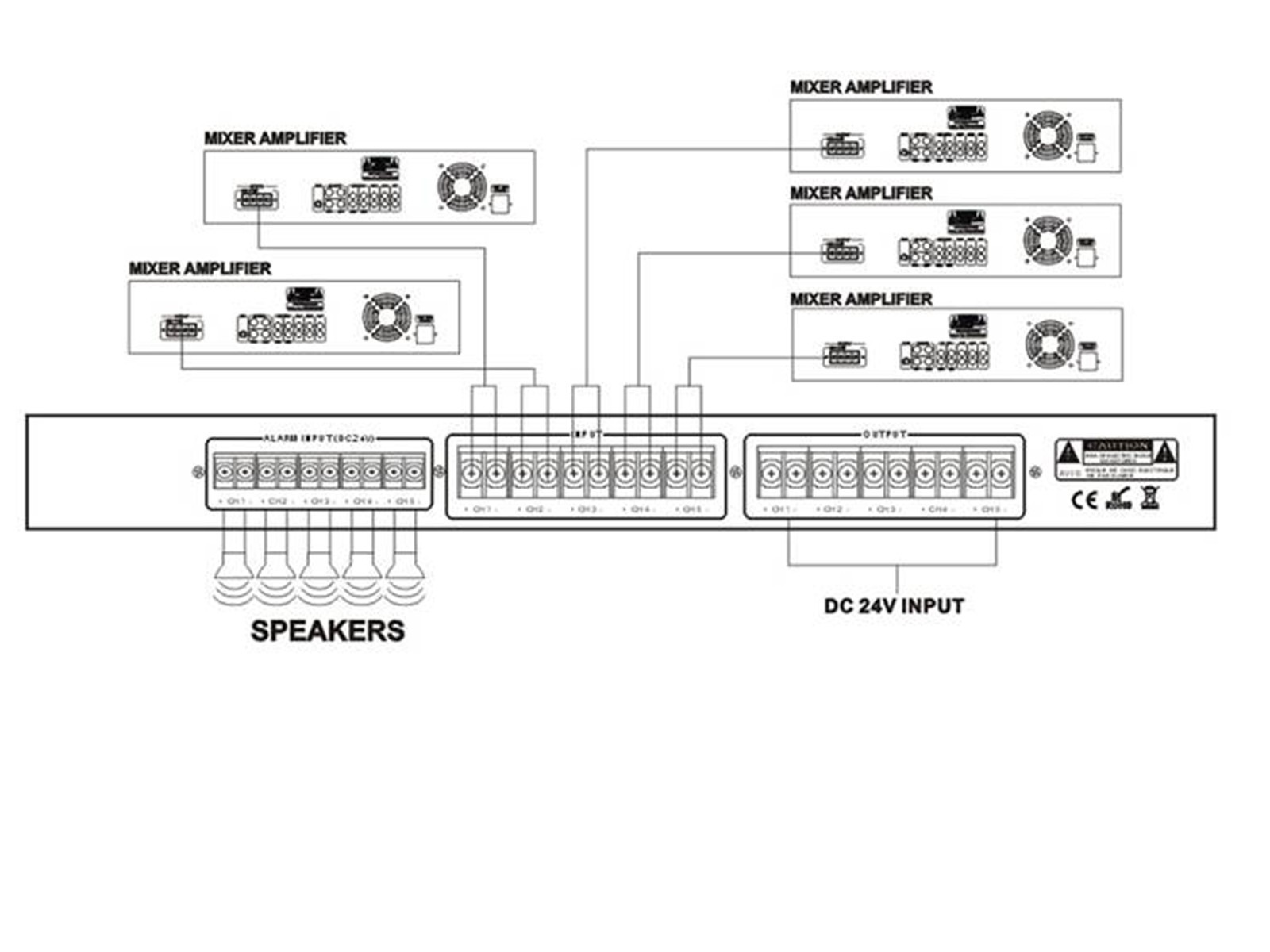

The 19VOL5X200P is a 19” unit, equipped with 5 pieces 100 volt volume controls that can handle up to 200 watts of power each. The 19VOL5X200P volume control is equipped with a 24V priority relay. This way a microphone call will always come through at maximum volume, no matter what position the volume control is in. By using the 19VOL5X200P you can adjust the loudspeaker level in different zones.

19″ (483mm wide) rack mounting:                     Yes

height- rack units (1U=44 mm):     1U (44mm)

depth (build in):             209 mm

depth (incl front):          …

Power Ouput:                 200 watts*5

Inputs:        5 channels

Outputs:     5 channels

Total Output:                  1.000W

Frequency Response:   100 Hz to 16 KHz(1.5dB)

Output Level:                  0V~100V

Input:          100V

Relay:          DC 24V

Power Consumption:   5W

Dimensions:                    484x209x44mm

Main construction material –           Panel: aluminum plate / Case: steel plate

Colour:        Black

Weight:       4,6Kg
