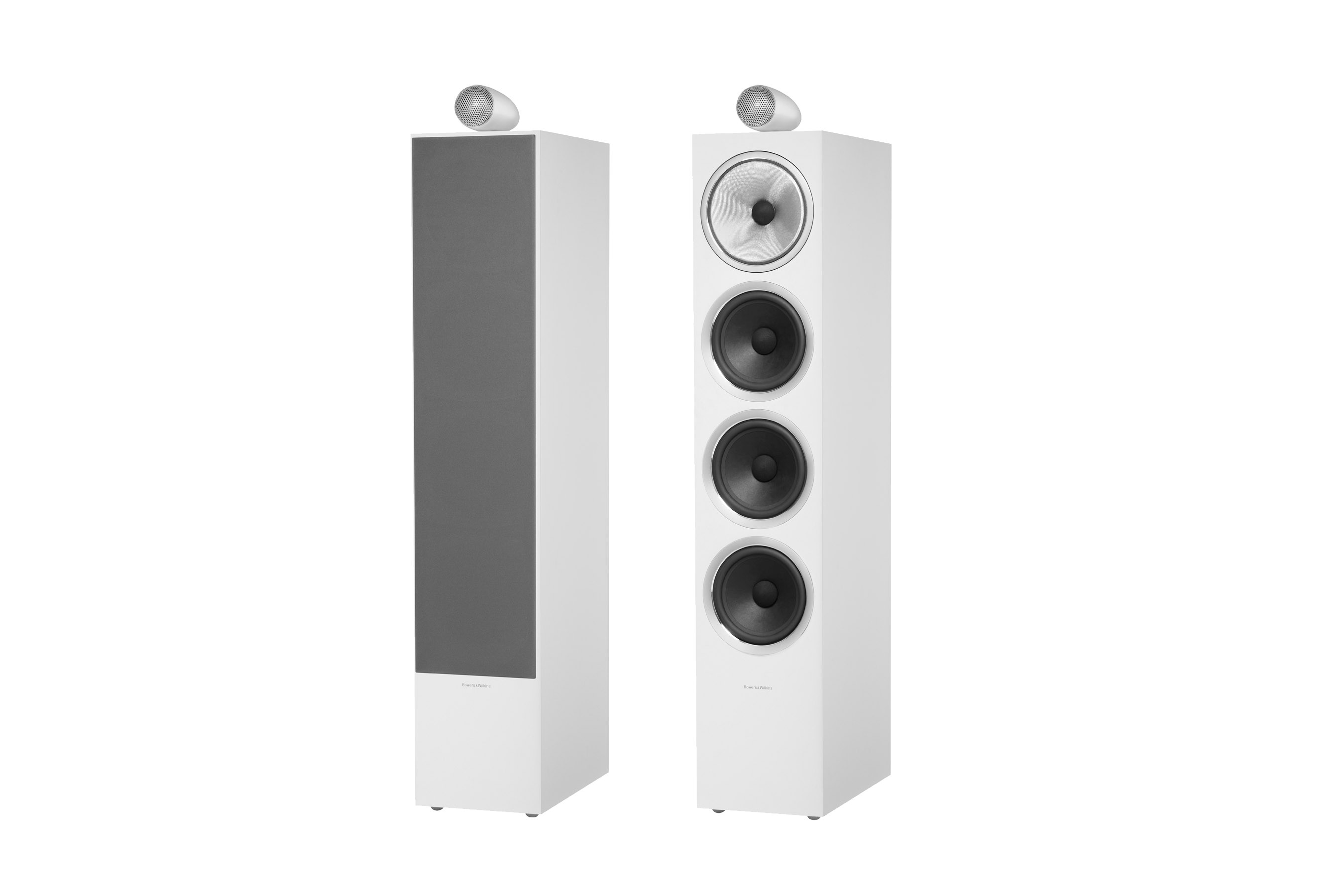

With three dedicated Aerofoil™ Profile bass drivers, a Continuum™ cone, and a solid body tweeter housing on top, 702 S2 brings the goosebump-inducing clarity and detail of studio-quality sound to your home audio set-up.
Music. Movies. Television. 702 S2 promises to transform your living room into a haven of high-quality sound, thanks to its studio-grade technologies trickled down from the 800 Series Diamond.
Milled from a solid block of aluminum, the solid body tweeter housing design creates an acoustically optimized housing for the tweeter – one that’s exceptionally inert and resistant to resonances.
Carbon Dome tweeters are purpose-built for the 700 Series. Delivering a dramatic improvement on the aluminum double dome tweeter, they raise the breakup threshold to 47kHz, for pinpoint imaging accuracy and detail.
Voices and instruments are delivered with purity and precision, thanks to the smooth, accurate Continuum™ cone midrange driver.
The midrange drivers in these floorstanders feature decoupled design, adapted from a similar system in the 800 Series Diamond. Decoupling reduces cabinet coloration, and boosts midrange clarity.
Developed using advanced computer modeling techniques, the Aerofoil™ Profile bass cone has variable thickness, providing stiffness and rigidity where it’s needed most. The result: deep and dynamic bass.
3-way vented-box system
Decoupled Carbon Dome tweeter
Solid Body Tweeter-on-Top
Continuum™ cone FST™ midrange
Aerofoil™ Profile bass cones
1x ø25mm (1 in) Decoupled Carbon Dome high-frequency
1x ø150mm (6 in) Continuum cone FST midrange
3x ø165mm (6.5 in) Aerofoil Profile bass
Frequency range: -6dB at 28Hz and 33kHz
Frequency response: 46Hz – 28kHz ±3dB
Sensitivity: 90dB spl (2.83Vrms, 1m)
2nd and 3rd harmonics (90dB, 1m)
<1% 86Hz – 28kHz
<0.5% 110Hz – 20kHz
Nominal impedance: 8Ω (minimum 3.1Ω)
Recommended amplifier power:
30W – 300W into 8Ω on unclipped programme
Height: 994mm (39 in) cabinet only 1087mm (42.8 in) including tweeter and plinth
Width: 200mm (7.9 in) cabinet only 366mm (14.4 in) including plinth
Depth: 337mm (13.3 in) cabinet only 364mm (14.3 in) inc. grille and terminals 414mm including plinth
Net weight: 29.5kg (65 lb)
Cabinet finishes: Gloss Black/Satin White/Rosenut
