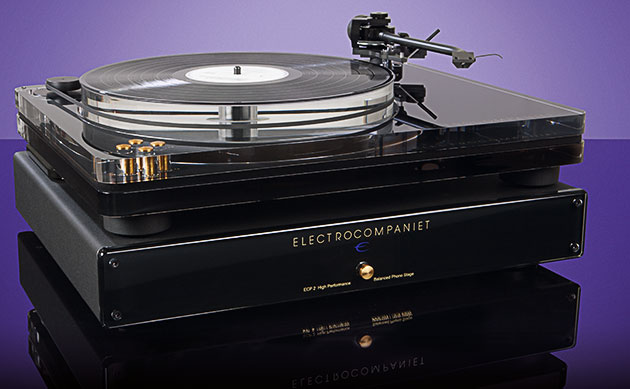

Electrocompaniet ECP 2

With the renewed international enthusiasm for the vinyl format, a world-class phono preamplifier or RIAA stage is more important in a reference setup than ever before.

The ECP-2 has become a new favourite of reviewers and enthusiasts alike. A benchmark product in its price bracket, much like other Electrocompaniet products.
It incorporates state- of-the-art instrumentation and operational amplifiers and highest quality discrete components in the signal path. Of course it is all DC coupled.

The ECP 2 can accommodate any imaginable pickup, MM or MC thanks to its extremely configurable input stage.

Ajustable gain and very strictly matched to the RIAA curve.



2,390.00

Aprašymas

Phono section:

Gain @ 1 kHz RCA                      Adjustable 39,8 – 71,4 dB

Gain @ 1 kHz XLR                       Adjustable 45,8 – 76,4 dB

Resistance loading (RL)            Adjustable 10 Ω – 47 kΩ

Capacitive loading (CL)             Adjustable 0 – 350 pF

Maximum output level:           17.5 V rms (+ 25 dB V)

Overload margin                        > 31 dB @ 1 kHz

Output impedance                    100 Ω single-ended, 200 Ω balanced

Frequency response                 20 – 20 kHz +/- 0.2 dB

RIAA Correction Accuracy: ± 0,1 dB

Subsonic filter                             -3dB @ 11 Hz, 24 dB/octave

Channel separation                   > 85 dB, 20 – 20 kHz

THD + Noise    < 0.003 % @ 1 kHz

S/N-R                 96 dB, 1 kHz, A-weighted, ref. 10 dB V output

S/N-R                 91 dB, 1 kHz, A-weighted, ref. 5 mV input

S/N-R                 67.4 dB, 1 kHz, A-weighted, ref. 500 μV input

Dimensions:

Width                465 mm / 18.3 inches

Depth                371 mm / 14.6 inches

Height               78 mm / 3 inches

Weight              9 kg. / 19.8 lbs.
