Configuration:

2-way Reversed Array

Drivers:

1 Tweeter 38mm T38Waveguide

1 Woofer 165 mm ROHACELL® Full-Apex™ Poly-Ring NdFeB motor

Sensitivity:

90 dB SPL normalized to 1 m/2.83 Vrms/
de-correlated L/R pink noise in
ITU-R BS 1116-1 compliant listening room

Low Frequency Cut Off:

50 Hz @ -3 dB referred to C4 WETS

Crossover Frequencies:

1180Hz @ -6dB (4th Order)

Suggested Amplifier:

Up to 120W/4Ω Average Power

Rated Impedance:

Modulus 4Ω (minimum 3.4Ω @170Hz)

More than +36° (500-1200Hz)

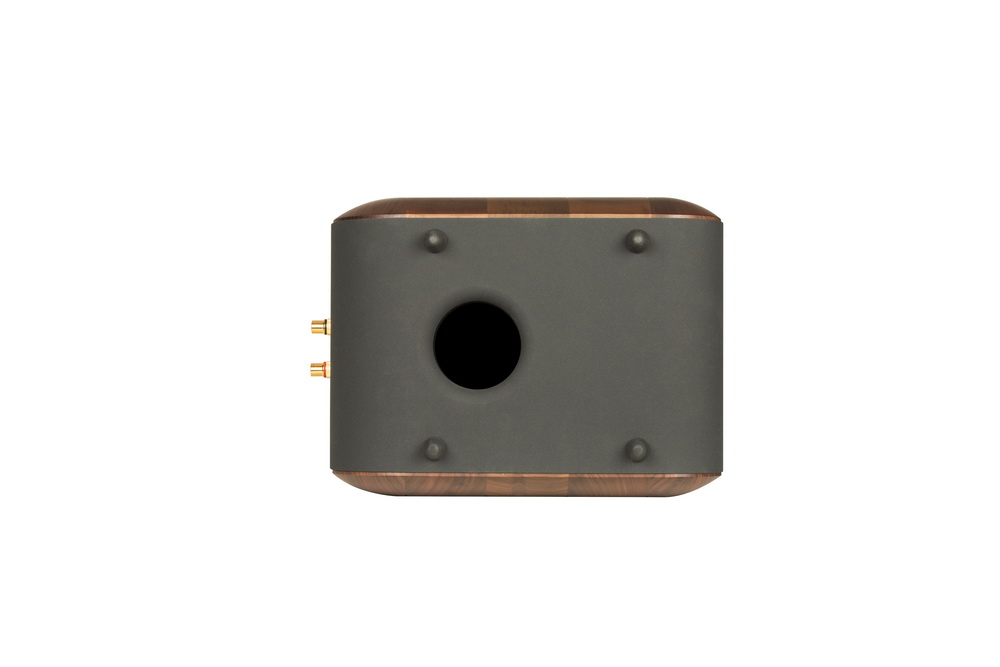

Low Frequency Load

Down-Firing Vented

Ear Listening Height

Preferably on woofer axis

Finishing:

Solid walnut and hdf

Size:

445 x 240 x 310 mm (H x W x D)

Weight:

10 Kg ( single piece )
