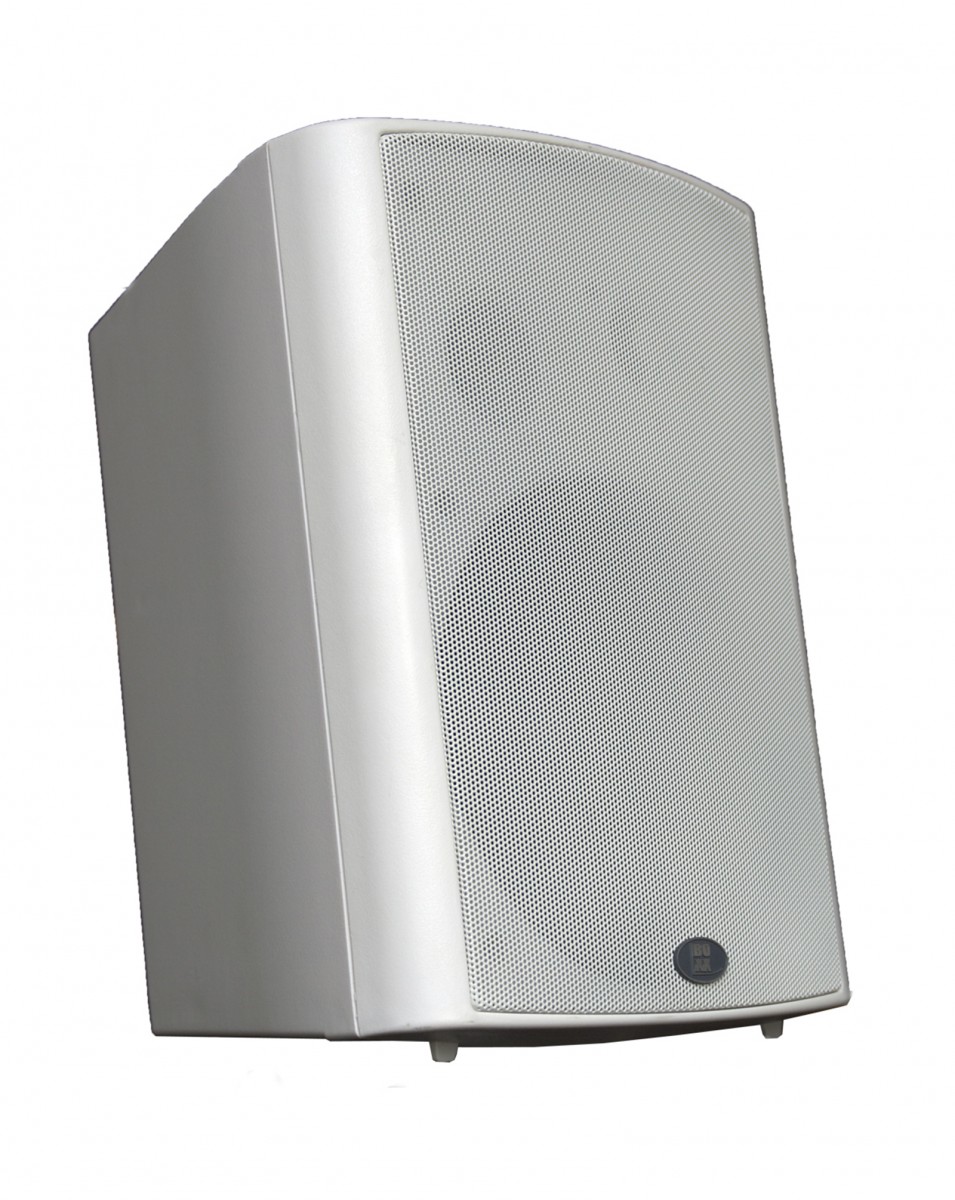

The BDQ-6P is a stereo loudspeaker set that consists of a passive loudspeaker and an active loudspeaker.

Height:              290 mm

Width:               220 mm

Depth:               245 mm

Woofer Size:   6 inch Hifi PP Shielded

Tweeter Size: 1 inch

Loudspeaker system:               2-way Hifi Pro, DTB Reflex Tuning

Active:               Yes

Low impedance dynamic power:                     2 x 30W

Applicable in 100V:                    –

100V Transformer power taps:                         –

Applicable in 70V:                      –

70V Transformer power taps:                           –

Max SPL 1M:   111 dB

Frequency Responce:              45 – 20 KHz

Tone control treble:                  ± 12 dB at 12 kHz

Tone control bass:                     ± 12 dB at 80 kHz

THD (Total Harmonic Distortion):                     < 0.07%

Signal to noise ratio:                 > -90 dB

Horizontal dispersion angle 1000 Hz:              120º

Vertical dispersion angle 1000 Hz:                   100º

Inputs:              RCA – Stereo Mini Jack – Balanced Euroblock

Main construction material – Baffle: Enforced Poly Plastic / Grille: Steel

IP rating:           40

Colour:              White (RAL 9010)

Mounting system:                     U-Bracket fixed by screw

Weight:             5,75 Kg (Brackets included)
